A carton that looks correct on screen can still fail on an automatic cartoner. It jams on the tuck, the crease cracks, the glue flap peels, or the pack runs at half the quoted speed because the board is fighting the machine. None of that is a graphics problem. It is structural.

Pharmaceutical box design is an engineering specification wearing a print job's clothes. The die line, the board, the creases and the tolerances decide whether the pack runs, and they are usually fixed long before anyone thinks to ask the packer. This article covers what actually matters structurally, in the order you should be deciding it.

Board grade, calliper and how the pack behaves

Folding boxboard for pharmaceutical cartons is typically a coated virgin grade such as GC1, GC2 or SBS, selected for print surface, stiffness and consistency. Recycled grades exist and are used, but they behave less predictably at the crease and can vary batch to batch.

Calliper is the practical decision. Too thin and the carton lacks the stiffness to stay open under the pusher, so it collapses or the product misfeeds. Too thick and the tuck will not close cleanly, the erecting section fights the board, and running speed drops. Most solid dose cartons sit somewhere in a fairly narrow band for good reason, and moving outside it should be a deliberate decision taken with the packer, not a cost-down substitution made at the print supplier.

Grain direction matters as much as thickness. Creases perpendicular to the grain fold cleanly; creases running with the grain resist and can crack, particularly through a dark solid printed area. Specify grain direction on the cutter guide and hold it as a controlled attribute.

The cutter guide is the real specification

The die line, or cutter guide, is the document that defines the carton. Panel sizes, flap depths, crease positions, tuck geometry, dust flap radii, glue flap width and lock cut-outs all live there. Artwork is applied to it afterwards.

Get the cutter guide approved before any graphic work starts. Changing a panel dimension after artwork is laid up means repositioning every element, re-checking Braille clearance, re-checking coding zones, and re-running the whole approval sequence. It is one of the most common causes of avoidable delay in packaging projects.

Carton styles and where each one fits

• Reverse tuck end. Tucks open from opposite panels. The cheapest to tool and the most common for tablets and blisters. Fine on most cartoners.
• Straight tuck end. Both tucks open from the same panel, giving a cleaner face for print. Slightly more board and a slightly fussier erect.
• Crash-lock base (auto-bottom). The base locks as the carton is squared, so it erects fast and carries weight. Suited to heavier or liquid-filled packs.
• Glued side seam. Standard on nearly all pharmaceutical cartons; the seam position determines which panel takes the join and where you must not place critical print.

Tuck length, dust flap shape and the depth of the slit lock all affect whether the carton closes first time. Tucks that are too short pop open; too long and they buckle. These are known geometries; use them rather than inventing new ones for aesthetic reasons.

Creasing, tolerances and change parts

A poor crease is the single most common cause of carton jams. If creasing rules are worn, set too deep or misaligned, the carton will not fold square, and a carton that is out of square will foul the bucket chain or the closing section. Ask the print supplier what crease profile they are running and how they control it across a run.

Dimensional tolerance is the other half of the problem. Automatic cartoners are set up with change parts sized to the carton. A pack that drifts a millimetre across a print run may sit inside the printer's normal tolerance and still be outside what the machine will accept without resetting. Agree the tolerance explicitly, in writing, with both the carton supplier and the packer.

Internal volume needs designing too. Leaflet bulk is routinely underestimated. A multi-language leaflet folded to fit can be several millimetres thick, and if the carton was sized on the blister alone, the leaflet inserter will struggle and the tuck will bulge. Size the carton on the worst-case leaflet, not the current one.

Features that have to be designed in, not added later

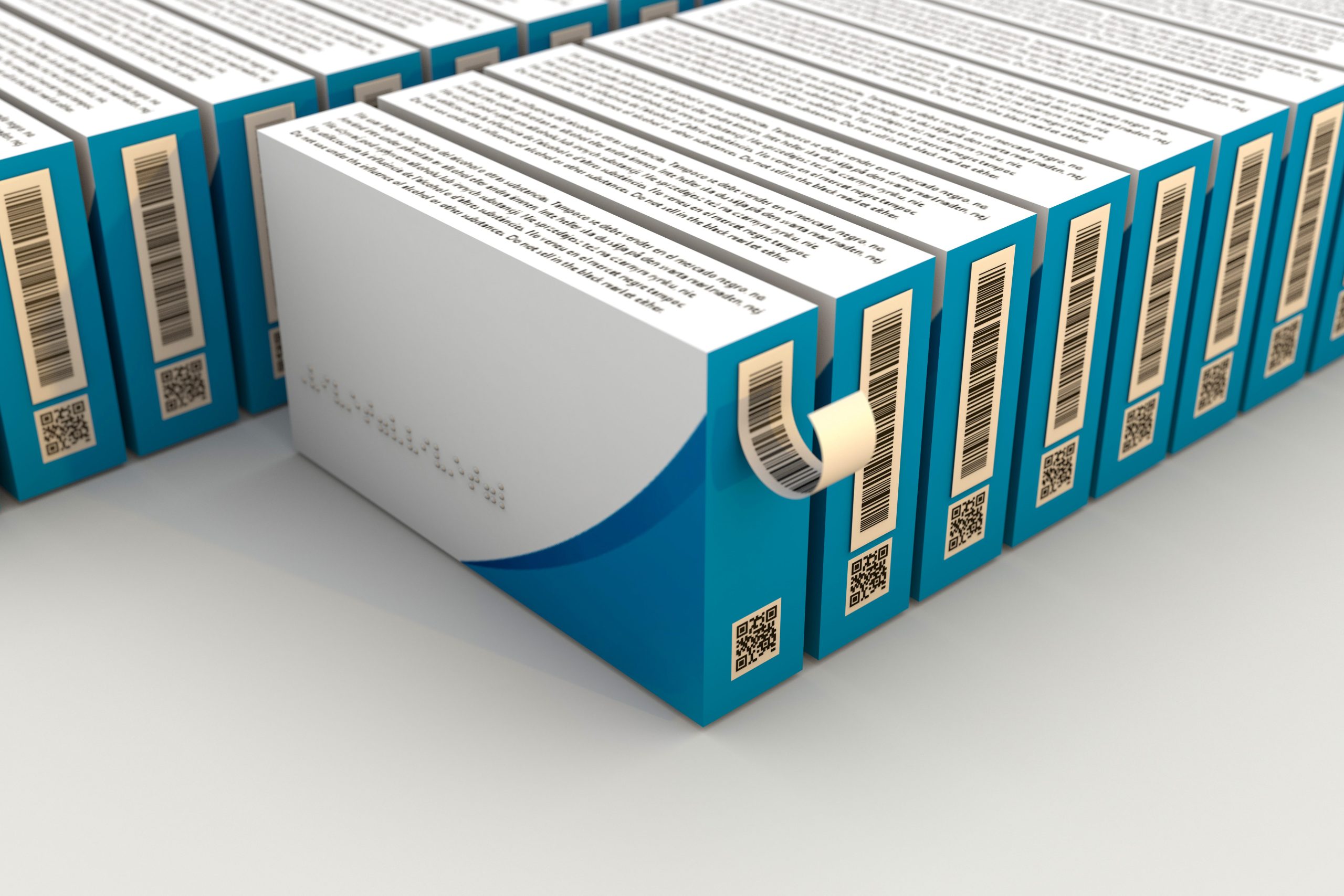

Braille. Position the embossing where it has clearance from creases, the glue seam and the tuck. Dots pressed into a crease flatten out; dots over a heavy varnish lose definition. Braille also has to survive erecting and transit, so it is checked as part of pack qualification.

Tamper-evident seals. Whether you use a label, a glued flap or a tear strip, the surface it bonds to must be right. Varnish and certain coatings reduce adhesion, so specify a varnish-free window where a seal or label will land.

Coding and over-labelling zones. Batch number and expiry date are applied on the line, usually by inkjet or thermal transfer. Those areas need an uncoated or coding-compatible surface, a light background, and no critical print underneath. The same applies to any area reserved for over-labelling.

2D DataMatrix space. For serialised export markets, reserve a defined area for the code with its quiet zone intact, on a print surface capable of achieving the required grade. Print quality here is not cosmetic. A code that grades poorly fails verification, and product that fails verification does not ship.

Shipper and case design. The outer case should protect the cartons in transit, palletise efficiently and, where aggregation applies, present its own label position clearly. Design the case at the same time as the carton, not afterwards.

Proofing: the sequence that prevents expensive surprises

Three checkpoints, in order.

1. Cutter guide approval. Structure signed off before graphics begin, with grain direction, tolerances and feature zones marked.
2. Printer proofs. A press proof on the specified board, not a digital simulation on a different substrate. Colour, varnish behaviour, crease quality and coding surface can only be judged on the real material.
3. Line trial. Run a quantity of plain or printed cartons through the actual cartoner with the actual product and leaflet before committing to a full print run. Measure erecting, closing, coding legibility, code grade and reject rate.

The line trial is the step most often skipped and the one that saves the most money. Central Pharma runs these trials on the equipment the pack will eventually run on, and feeds the findings back to the design agency and carton supplier while the tooling can still be changed.

Key takeaways

• The cutter guide, not the artwork, is the real specification, and it should be approved before graphic design starts.
• Board grade, calliper and grain direction determine erecting quality, crease behaviour and running speed.
• Carton dimensions must be agreed with a defined tolerance because cartoner change parts are sized to the pack.
• Braille, tamper-evident seals, coding zones and DataMatrix areas need dedicated, varnish-controlled space designed in from the start.
• A line trial on the real equipment with the real leaflet is the cheapest insurance available in pharmaceutical box design.
